19.4inch SG/Light & Wonder Kascada Ideck USB For Kascada Cabinets

Product Categories

Shenzhen Anwell Touch Technology Co., Ltd.

Contact Now

Name: 194inch SGLight amp Wonder Kascada Ideck USB For Kascada Cabinets
Brand: Anwell Touch
Price: 1 USD

Brand Name : Anwell Touch

Model Number : AW194CB-GK01

Certification : CE,RoHS,FCC

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : TT

Supply Ability : 1000 pieces per Month

Delivery Time : 8-15 working days

Packaging Details : Standard carton box

Display Colors : 16.7M

Response : <10 msec

Viewing Angle : 89/89/89/89(Typ.)(CR≥10)

Touch Technology : Capacitive touch

Touch Connector : USB

Surface Hardness : 7H

Operating Temperature : 0°C~45°C

Humidity Range (RH) : 10%-80%RH, 40"C

Contact Now

Product Description

Specifications
SG/Light & Wonder Kascada iDeck
Panel Size	19.4"
Active Area	476.64mmx126.6mm
Resolution	1920*510
Pixels Pitch	248.25 (per one triad) ×248.25
Display Colors	16.7M
Scale Ratio	19:5
C/R	3000:1
Brightness	1000cd/cm²
Back-Light	LED Lighting Bar Type
Viewing Angle Range	89/89/89/89

Touch Technology	P-CAP
Touch Points	10Points(Max)
Touch Construction	G+G
Touch Cover	Glass T=1.8mm
Interface	USB-B Female
Input Source	Finger
Response Speed	<10ms
Supports OS	windows xp/7/8/10, Linux, Android, MacOS
Technical Service	Customize protocol for USB and RS232 interface
Firmware Upgrade	Supports Upgrade Firmware Via USB Interface

Temperature	Operating:0°C~45°C Storage:-20°C-55°C
Humidity	Operating:10%-80%RH, 40"C Storage:10%-80%RH, 40°C

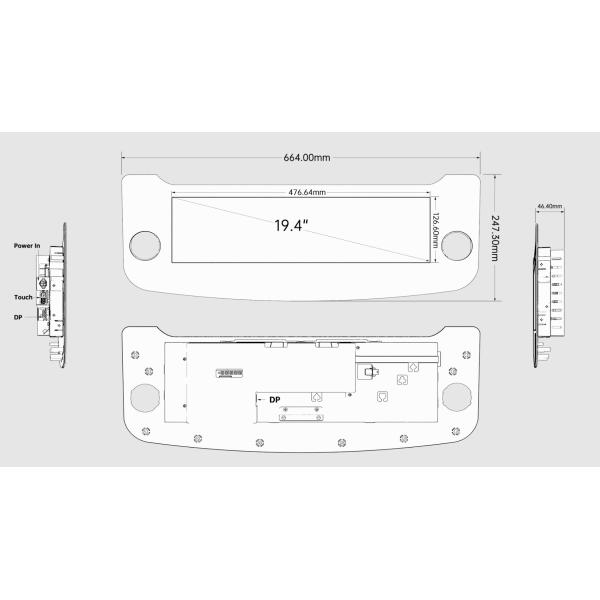

Product Dimension	664mm x 247.3mm x 46.4mm
Net Weight	2.5kg
Package Dimension	740mm300mm200mm
Gross Weight	3.2kg
